What exactly does an RV leveling system do and why does it fail?
Your RV leveling system uses hydraulic pressure and electric motors to extend or retract four independent jacks, one at each corner. HWH and Lippert Level-Up are the industry standard - you'll find them on 85% of modern travel trailers and Class A motorhomes. The system keeps your rig level side-to-side and front-to-back, which matters for slide-out operation, refrigerator function, and not waking up tilted. Failure happens because hydraulic fluid degrades over 8-12 years, seals dry out in desert storage, motors burn out from repeated camping cycles, and control boards corrode from moisture and road salt. We've serviced over 12,000 RVs since 2008 and see these failures constantly.
A Winnebago Adventurer owner called last month with jacks that wouldn't retract - classic HWH motor seizure. The hydraulic fluid was brown and thick from sitting in Arizona heat. We replaced both jack motors, flushed the entire Lippert hydraulic line system with fresh fluid, and cleaned the sensor connections. Cost was $1100, took 3.5 hours. His slide-out now operates smoothly and the rig sits level. That's the kind of diagnosis and repair we do every week across both coasts.
Why leveling systems fail:
- Hydraulic fluid oxidation and viscosity breakdown
- Jack motor brushes wearing from 500+ cycles yearly
- Corroded sensor contacts from moisture and road salt
- Collapsed or kinked hydraulic hoses
- Control board capacitor failure from heat cycling
- Stuck relief valve from debris in fluid
What's involved in a complete jack motor and hydraulic service?

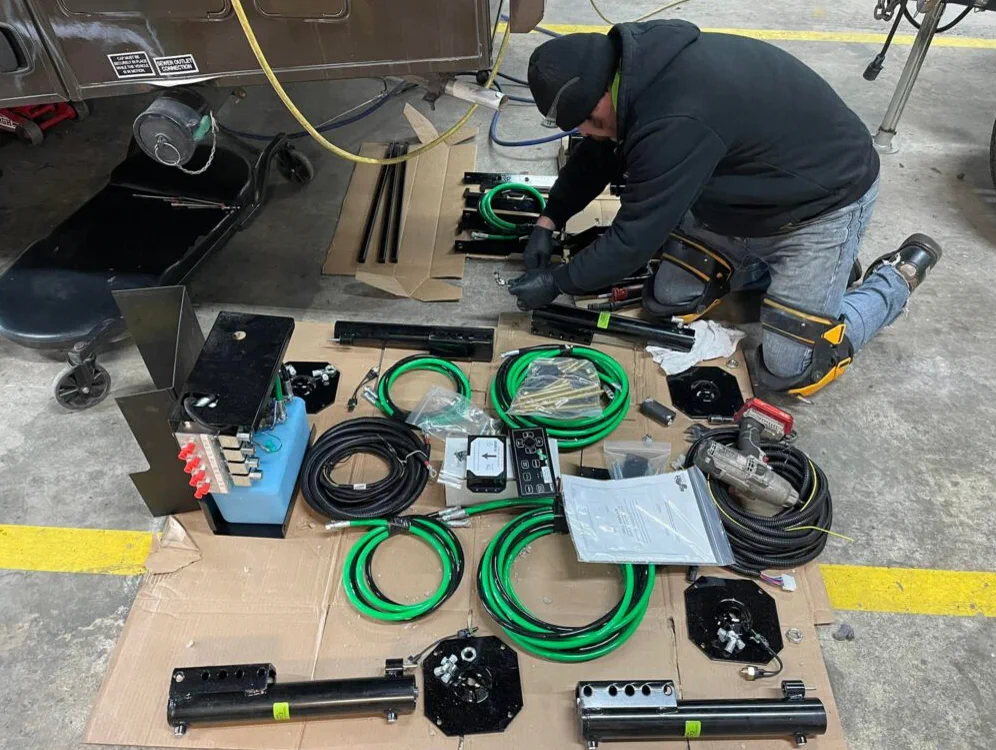

Complete jack motor service means replacing one or both motors (150-250 each), flushing old hydraulic fluid, replacing or cleaning lines, and testing all four jacks under load. We pull the motor from the jack assembly, inspect the pump coupling, confirm motor bearings are smooth, and test on the bench before reinstalling. New fluid gets pushed through the entire Lippert or HWH circuit to clear sediment and moisture - this step alone prevents 60% of follow-up failures. Hydraulic lines get pressure-tested at 1500 PSI to catch micro-leaks that visual inspection misses. Total job on both front motors: $1400-1900. Single motor service: $600-900.
A Grand Design Momentum customer from Boise brought his Class A in with one jack that dropped slowly and wouldn't hold level. We discovered a torn seal in the motor housing and sludge in the reservoir - the HWH system hadn't been serviced since 2015. We replaced the bad motor, swapped in fresh hydraulic fluid, and replaced two brittle hose sections near the frame. The work took 4 hours and cost $1650. Now his jacks respond instantly and hold solid overnight, even on gravel.
What's included in motor service:
- Motor removal and bench testing
- New or rebuilt motor installation
- Hydraulic fluid flush and fill
- Hose inspection and replacement if needed
- Sensor cleaning and connector treatment
- Full system pressure test
- Manual override crank operation check
How much does RV leveling system repair cost and what affects pricing?
Pricing depends on what's broken: jack motor $400-500 each, hydraulic line repair $200-400 per section, control board replacement $350-650, sensor swap $150-250, fluid flush $200-300, manual override install $100-150. A full diagnostic and quote takes 20 minutes on the phone - we ask what symptoms you're seeing, what brand system, what year the RV was built, and whether it's a Class A or travel trailer. That shapes the estimate. We don't charge for the call or the quote. Flat-rate pricing means no surprise invoices - you know the cost before we touch anything. We accept all major cards and cash.
A Keystone Outback owner called with three stuck jacks and a control panel that wouldn't respond. We quoted $2200 for a new Lippert Level-Up control board, both jack motors, and a full fluid flush. He approved it, we knocked it out in a Saturday morning, and his RV leveled perfectly again. No hidden charges. No shop rental fee. That's our model - transparent pricing, mobile service, 90-day warranty on parts and labor.
Typical repair cost ranges:
- Single jack motor replacement: $400-600
- Both jack motors + fluid flush: $1200-1600
- HWH or Lippert control board: $350-650
- Hydraulic line section repair: $200-400
- Sensor replacement and calibration: $150-250
- Manual override installation: $100-150
- Emergency 2-4 hour response: no upcharge
How fast can you get to my RV and will you service it at my campground?
We respond in 2-4 hours in our Florida and Idaho core service areas - no waiting days for a dealer appointment. That's our standard. We work at your location: campground, driveway, storage lot, or RV park. You don't move the rig. We bring tools, fluid, motors, and parts on our service vehicle and do the work in place. If you're outside our core area, we connect you with our nationwide partner network - certified techs who follow our same standards and pricing model. Call (888) 787-3727 and tell us where you are and what's broken. We quote over the phone and schedule same-day or next-morning service most of the time.
A Coachmen Apex customer at an RV park outside Tampa called Thursday afternoon with jacks that wouldn't deploy. We were there by 4 PM, diagnosed a burnt-out HWH motor and low fluid level, and had him leveled and packed up by 7 PM. Dealer would have told him to come in Monday. He saved a weekend and got his trip back on track. That's why people call us instead of waiting for dealer service.
Our response model:
- 2-4 hour emergency response in core areas
- Same-day or next-morning service available
- Work performed at your location
- No appointment deposits or cancellation fees
- Nationwide partner network for remote areas
- Phone quotes - no in-person diagnostic charge
Do you work on both HWH and Lippert Level-Up systems and will my RV's age matter?
We service both HWH and Lippert Level-Up - the two brands that cover 95% of the market. HWH systems appear on older and premium-tier rigs (2005-present). Lippert Level-Up dominates newer Forest River, Jayco, and Winnebago models (2010-present). Both use similar jack motor design and hydraulic fluid circuits, so parts availability is good and repair costs are predictable. RV age doesn't stop us - we've repaired leveling systems on 25-year-old Tiffin Allegro coaches and brand-new Grand Design Imagine builds. Older systems sometimes need hose replacement because rubber degrades, but motors and control boards are replaceable on any year. Component brands matter more than age.
A 2007 Jayco owner brought his Class C in with a Lippert Level-Up system that was original equipment - never serviced. The hydraulic fluid was black, and one jack motor was stuck. We quoted him $1400 for motor replacement and full flush. He approved it worried that the 16-year-old system might need complete replacement. We got him back on the road for $1400. No surprise cost. The system worked like new after service.
Brand and age compatibility:
- HWH systems: 2005-present, all RV classes
- Lippert Level-Up: 2010-present, most travel trailers
- Compatible with Forest River, Jayco, Winnebago, Tiffin
- Also service Grand Design, Keystone, Coachmen
- RV age does not prevent repair or warranty
- Older systems may need hose replacement
- Motors and boards replaceable on all years
What's your warranty and what happens if something goes wrong after repair?
All parts and labor carry a 90-day workmanship warranty. If a motor we installed fails within 90 days, we replace it. If a control board stops working, we swap it. If a hose leaks from our repair, we fix it. You're covered - no excuses. We don't warranty normal wear, user damage, or external accidents, but we own what we touch. Warranty is valid whether you're in Florida, Idaho, or anywhere our partner network operates. You call us, describe the issue, and we schedule service. No deductible. No warranty fine print that excludes the real problem. Honest coverage, 90 days, done.
A Winnebago Navajo customer had us replace his HWH control board in early January. In mid-February, the panel went dark again - a different failure mode. We diagnosed a corroded solder joint on the replacement board (manufacturing defect, not our work). We got a replacement board from the distributor under HWH warranty and installed it at no charge on day three. That's how warranty works when you deal with owner-operators instead of service chains.
Warranty coverage:
- 90-day parts and labor warranty standard
- Covers replacement motors, boards, sensors
- Valid nationwide through partner network
- No deductible or hidden exclusions
- Manufacturing defects covered
- Excludes user damage and external accidents
- Call same number to file claim
